# Photovoltaics: mounting rail

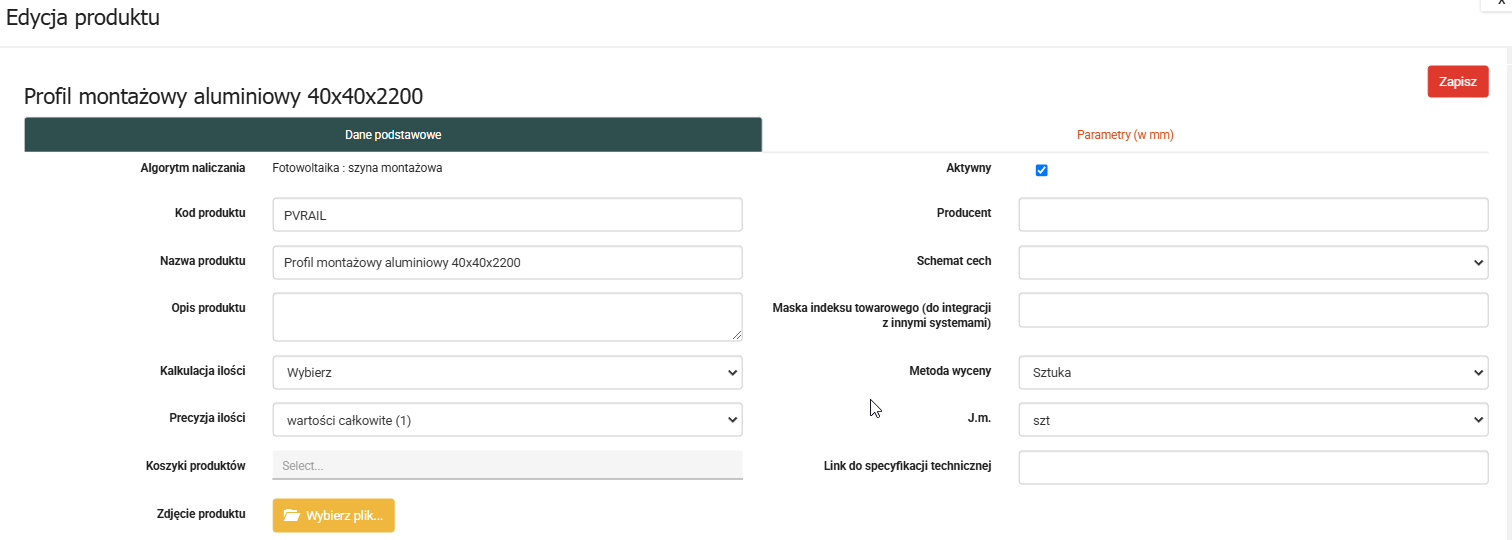

# Basic data tab

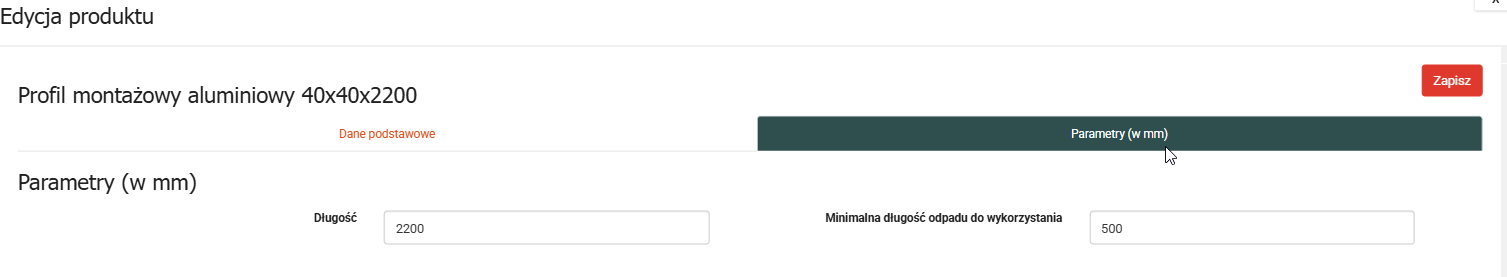

# Tab -Parameters-.

• Length - length of the mounting rail in mm.
• Minimum waste length to be used - specifies which minimum waste length of rail can be used in the next row in mm. The default value of 500mm means that waste from a length of 500mm and above will be used in subsequent rows.

For each row of PV panels, the system lays 2 rows of mounting rails (top and bottom). Mounting rail connectors are used at the rail joints as long as they are defined in the product database and added to the kit. Photovoltaics : mounting rail connectors
