# Gutter system : Gutter mounting hooks

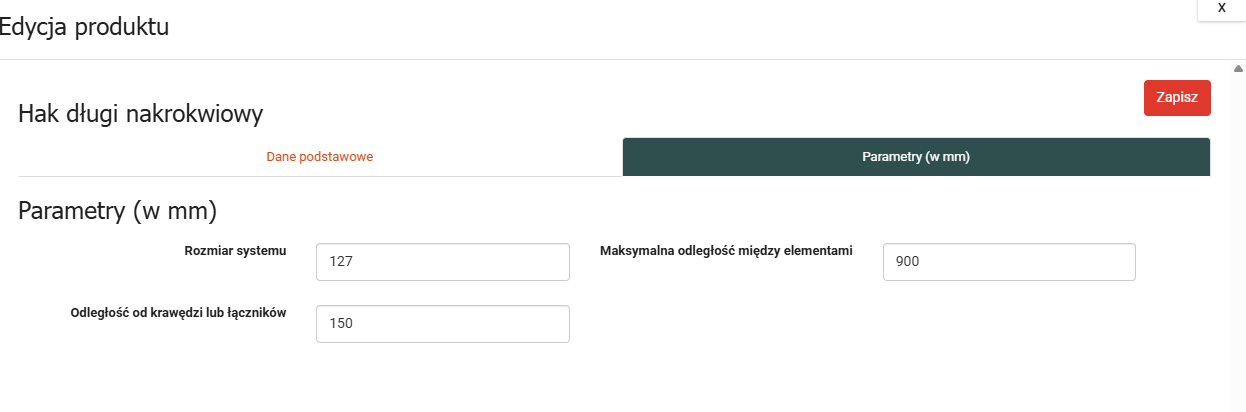

Mounting hooks are used to mount the gutter to the façade. From the programme's point of view, the method of installation (rafter or butt) is irrelevant. The parameters it defines are for this product: - System size - defines the size of the system (informative) - Distance from edge or connectors - defines the distance at which the initial hooks for the gutter are to be applied (from the bottom or connector ) For example 100mm - means that the first hook will be applied for each gutter 100mm from the edge of the eaves. The last hook will be applied for each gutter 100mm from the connector or second edge of the eaves. - Maximum distance between elements - specifies the maximum distance between hooks.

Example

1. 4m eaves
2. Mounting hook : Distance from edge of eaves = 100mm, Maximum distance between elements = 500mm
3. 2 gutters of 2m each were used.
4. Number of hooks from left

Gutter 1 100mm - first hook - 100mm from start 600 mm - second hook 1100 mm - third hook 1600 mm - fourth hook 1900 mm - fifth hook 100 mm from the joint

Gutter 2 2100 mm - sixth hook 100 mm from joining 2600 mm - the seventh hook 3100 mm - eighth hook 3600 mm - ninth hook 3900 mm - tenth hook - 100 mm from the end
