Start panel
For coverings of type Trapezoidal sheets and panels - standard lengths, 2 products can be combined on one slope. An example of the use of this functionality is the calculation of starter panels.
To set up a starter panel you need to:
Add to the slope a basic product from the group Trapezoidal sheets and panels - standard lengths.

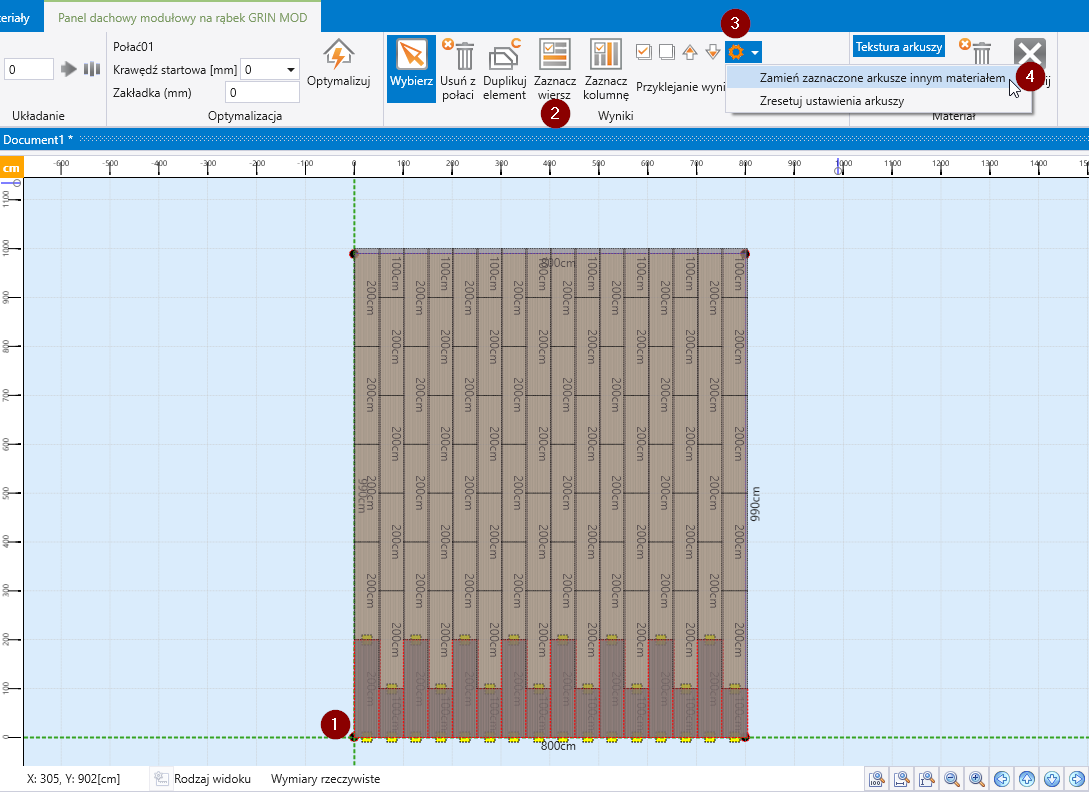

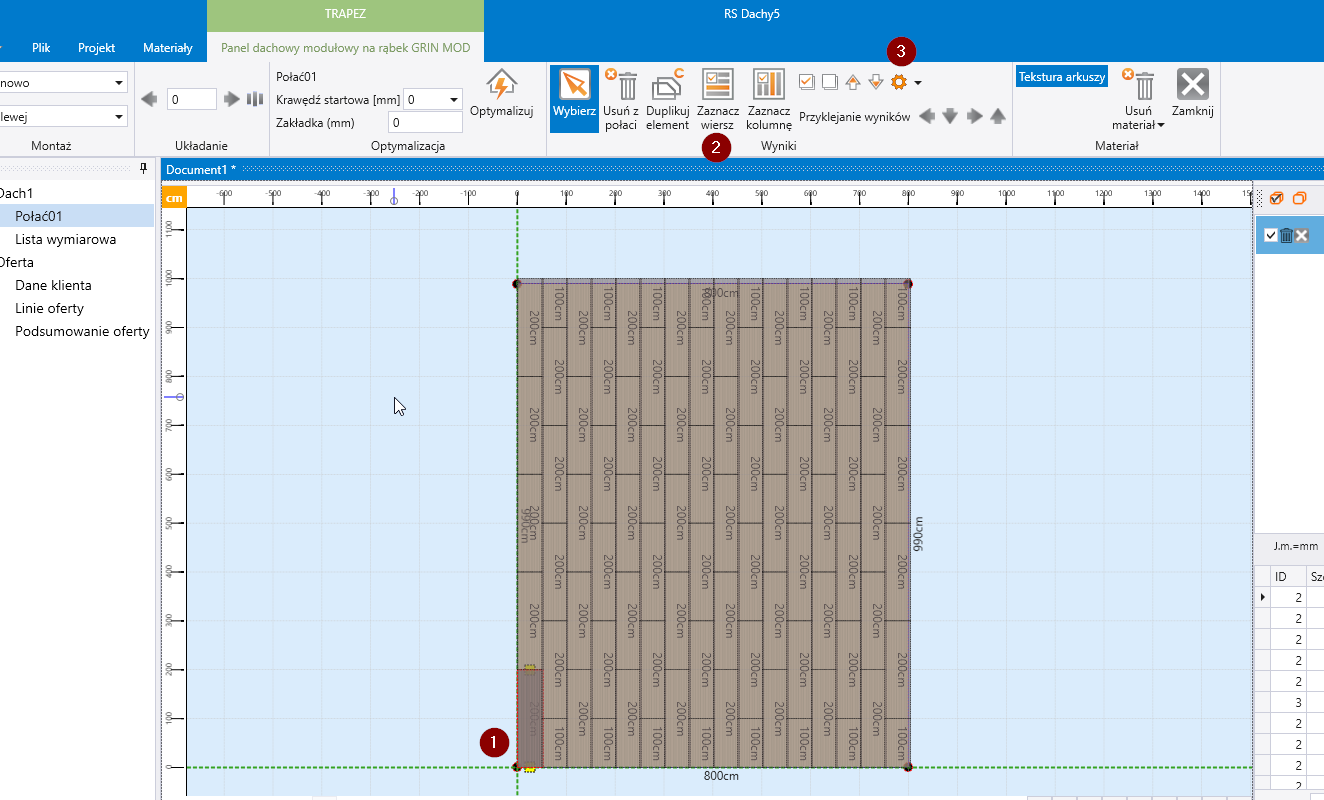

On the product tab :
- select the sheet in the row to be covered using the start panel
- select the Mark you know function.
- expand the list of special functions (icon with orange mode)
- select the option Swap the marked sheets with other material.

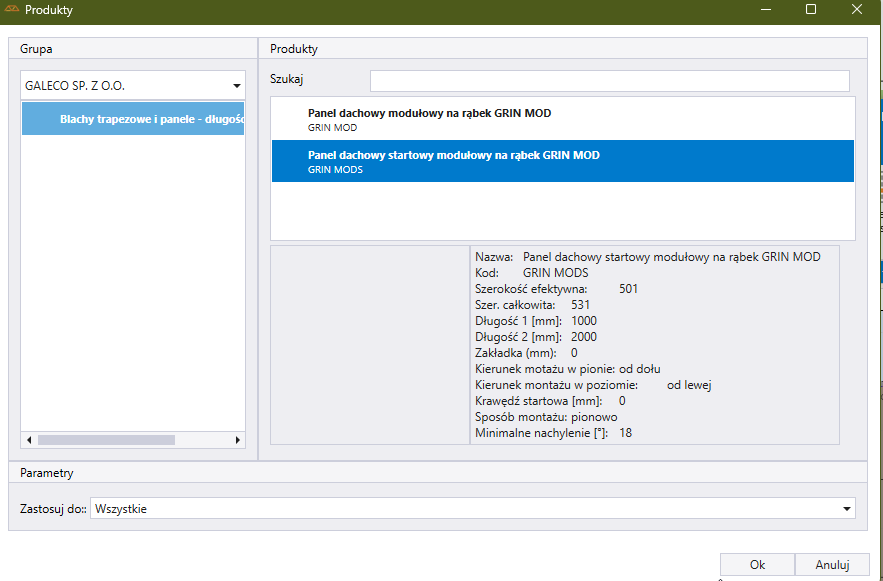

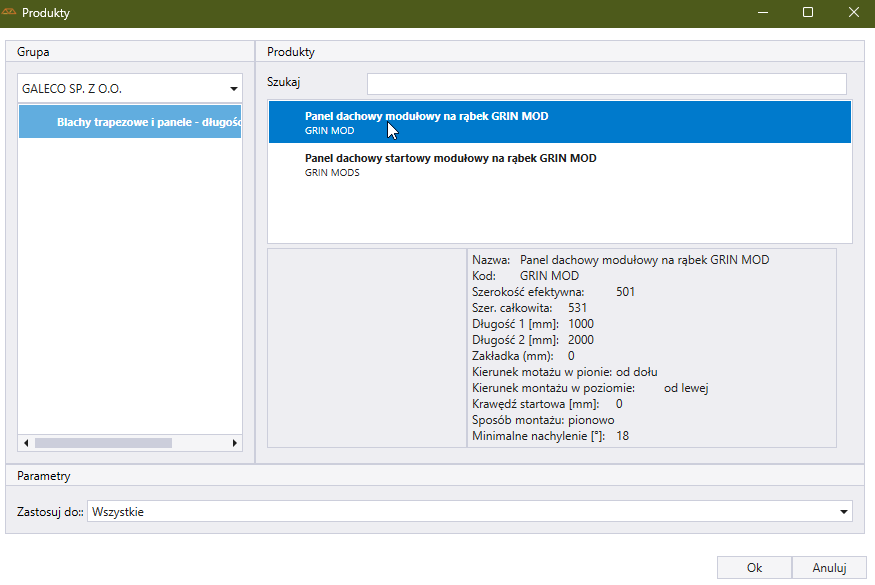

In the product dialog box, select the start panel

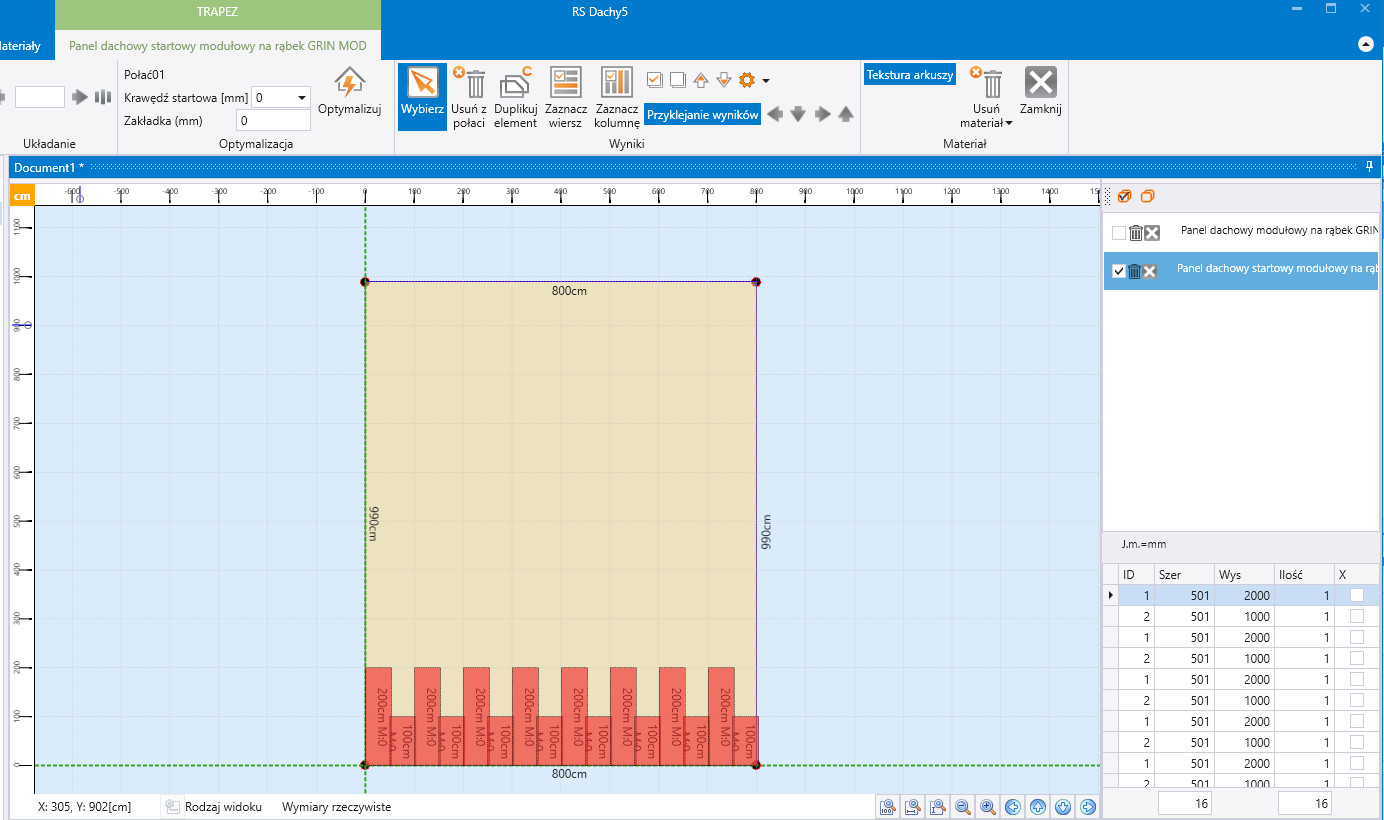

A second product will appear in the product list, which is the starter panel:

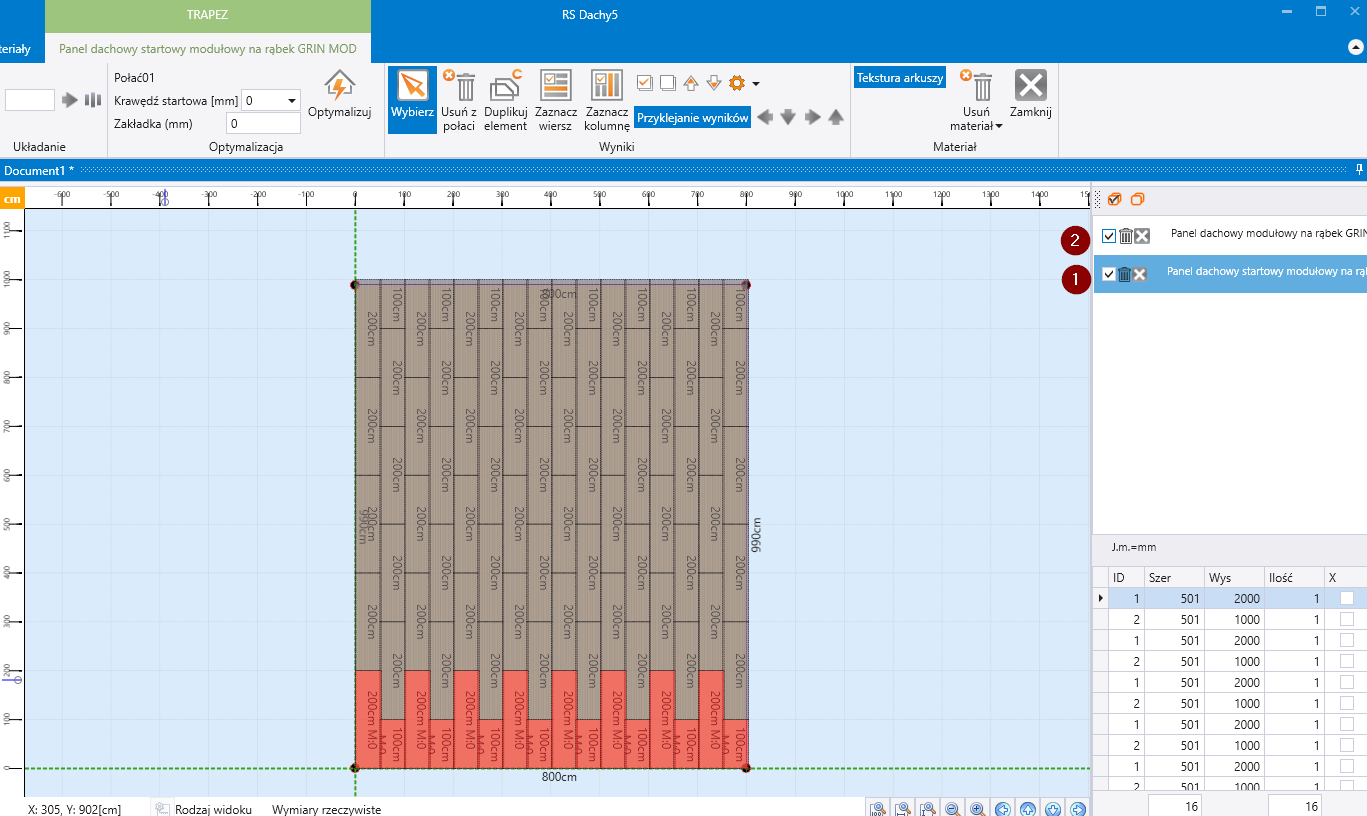

By clicking on the checkbox next to the product name for both coverages, the total sheets for both products will appear in the drawing.
